The P-3 series machines are a rewinding and inspection machines designed mostly for non-elastic materials. With this machine, one can re-roll, measure and inspect fabric. The machine comes in several types, so it’s important. The P-3S Rewinding Machine is an ideal choice for all textile manufacturers and businesses that handle any type of non-elastic fabrics. The standard width of the P-3 fabric roll is 190cm and the maximum roll diameter is 50cm. On special requests we are able to make machines for rolls up to 240 cm wide and diameter 80cm.

See P-3 and PP-3 machines videos here.

Key features:

• Rewinding/inspection machines with backlighting screens provide fast, easy quality control and measure fabric length.

• Machines may have built-in manual (Version /R) or semi-automatic (Version /A) end-cutters to increase efficiency in the workplace.

• An ideal choice for all textile manufacturers and businesses related to fabric trade;

• The machine winds the fabric from a roll placed in the cradle to another roll placed on a rotating shaft;

• High winding speed (50 m/min or 60 m/min).

• Mechanical counter (yards or meters).

• Easy fabric roll installation.

• Frame made of powder-coated steel.

Safety features:

1) The machine stops immediately when the emergency stop button is pressed;

2) For safety reasons, it is not possible to start the machine after an emergency unless the operator resets the machine (accidental self-start safeguard);

3) The machine is protected using a special protection relay made by Omron.

Available standard models:

P-3L     |     P-3L/R     |     P-3L/A     |     P-3S     |     P-3S/R     |     P-3S/A

PP-3L     |     PP-3L/R     |     PP-3L/A     |     PP-3S     |     PP-3S/R     |     PP-3S/A

P-3SE     |     P-3SE/R     |     P-3SE/A     |     PP-3SE     |     PP-3SE/R     |     PP-3SE/A

Available models on request:

P-3SK     |     P-3SK/R     |     P-3SK/A and PP-3SK     |     PP-3SK/R     |     PP-3SK/A.

P-3 machines Frequently Asked Questions:

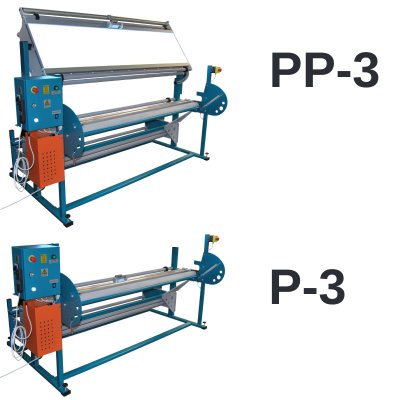

Q: What is the difference between P and PP?

A: P is just a rewinding machine, PP is rewinding-inspection machine (with backlighting, it allows one to inspect the material during the rewinding process).

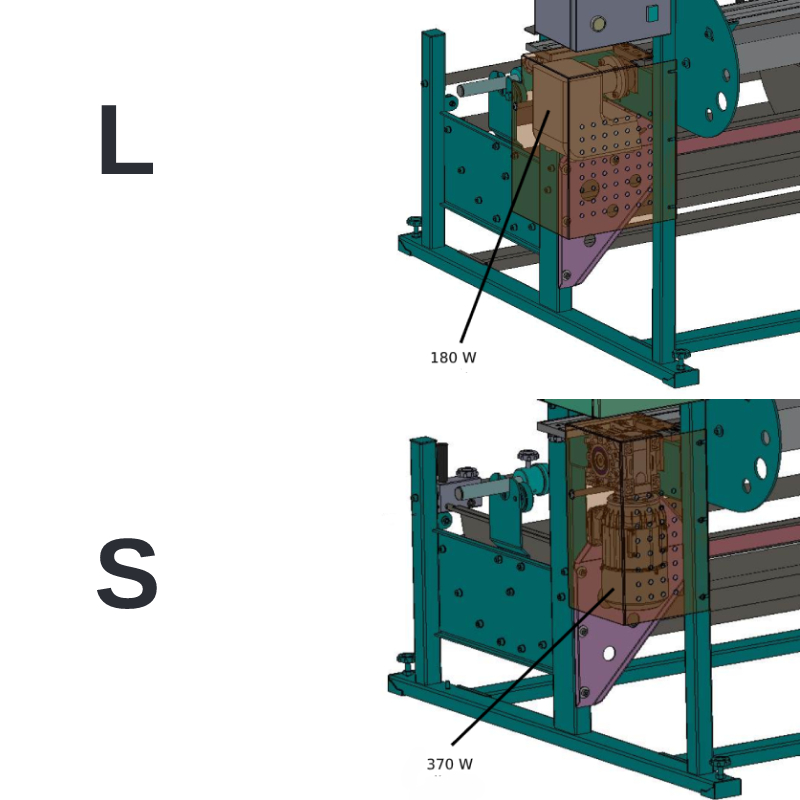

Q: What is the difference between L and S?

A: L means weaker motor (180 W rated for rolls max. 40 kg), S means more powerful motor (370 W rated for rolls max. 70 kg).

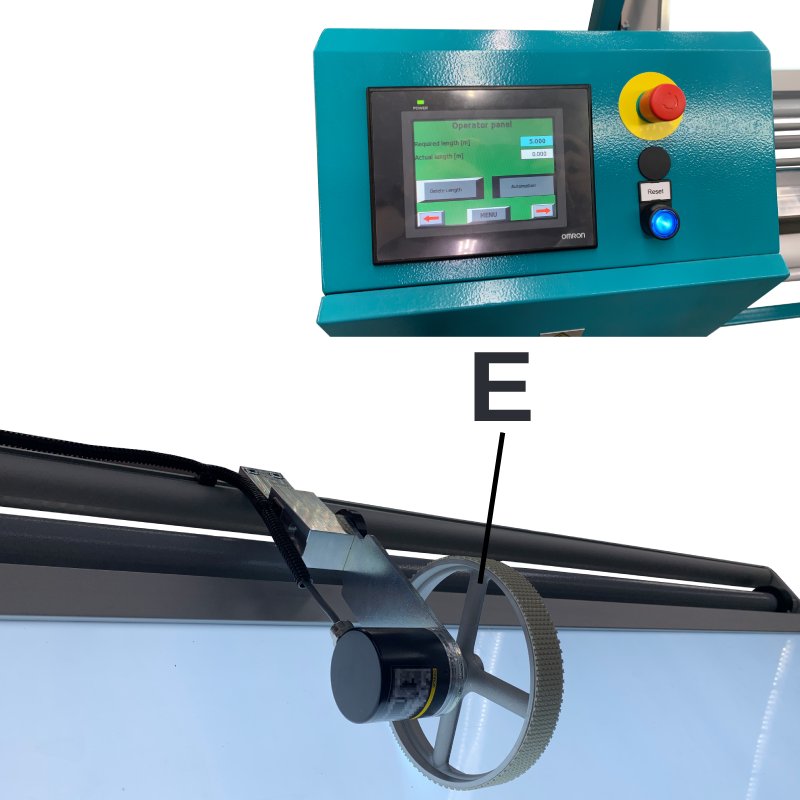

Q: What does E mean?

A: E means - Encoder (digital counter). In P-3SE and PP-3SE we give digital counter and a touchscreen panel. The machine is able to stop at a required length. Only S version of the machine can be equipped with an encoder.

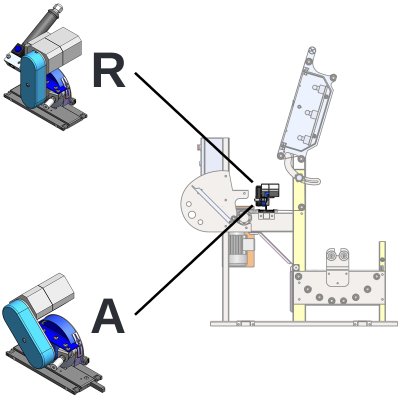

Q: What is the difference between /R and /A

A: /R version has the manual electric cutter OT-1/R. Version /A has the semi-automatic cutter OT-1/A.

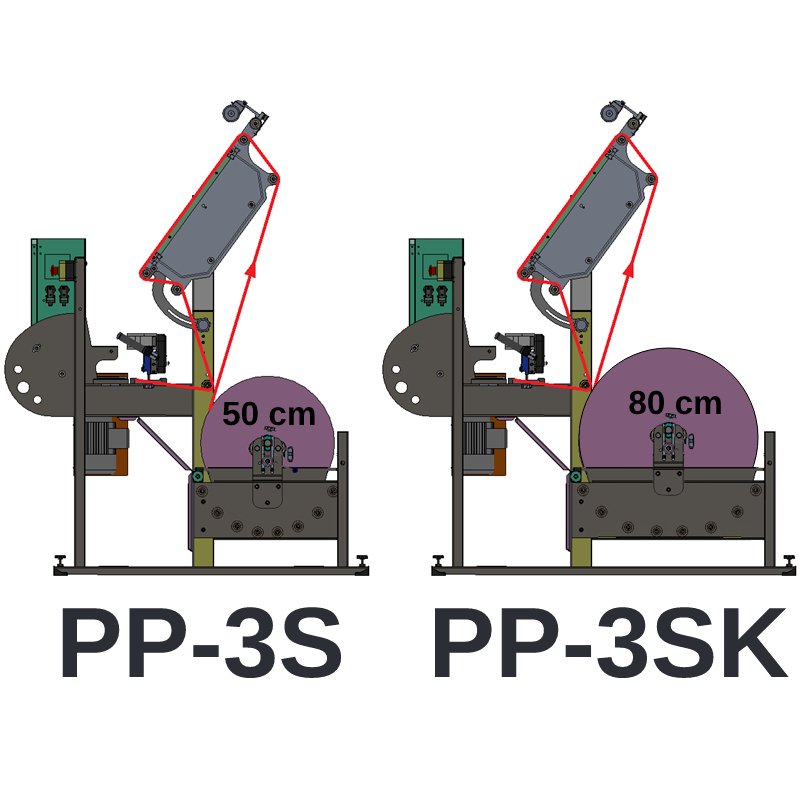

Q: What does /K means?

A: /K version machines are machines designed with a big cradle 80cm in diameter for big but lightweight materials (like filters).

Q: Is the rewinding speed adjustable?

A: Both machines are with adjustable speed, L version speed is adjustable using electric board, S version has inverter. S version is better for heavier rolls of fabric.

Q: Do P-3 series machines have fabric edge alignment, automatic stop, reverse or fabric tension control?

A: No, these machines are very simple and inexpensive. They do not have these functions. If you need the fabric edge alignment, automatic stop or fabric tension control we can make a custom machine similar to PP-5 or CTLR-2000. These machines are made individually for your materials.

Where to buy?

REXEL company held a stable position in the market of cutting tools manufacturers for over 35 years. They produce machines for manufacturers of fabric rewinding machines, upholstered furniture, fabrics, and roller blinds, as well as a number of cutting tools for any line of business where precise cutting of a variety of materials is essential for efficient production.

These machines operate in 79 countries around the world; REXEL has won the trust of the customers by producing durable, safe, and competitively priced equipment. When required, they can manufacture equipment of non-standard parameters, taking into account abnormal fabric widths, weight of fabric rolls, operating conditions, and many other factors specified by our clients. REXEL uses advanced machinery in the production of our equipment, and all of our machines are designed so that your production can maximize its efficiency.
