MANUAL MEASURING DEVICE FOR BAND KNIFE PR-3

MANUAL MEASURING DEVICE FOR BAND KNIFE PR-3

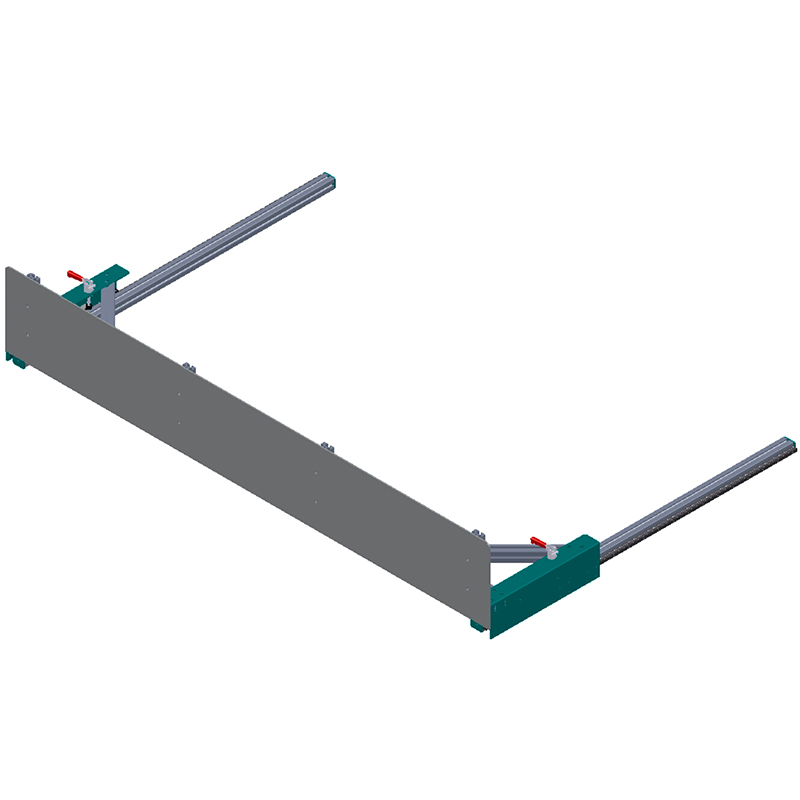

The manual measuring device PR-3 was designed as an additional component to Rexel band knife machines R1250, R1150, R1000 or R750. It is not, however, compatible with Rexel band knife machine R500. This device allows for an accurate cut of pieces of fabric, foam, and other materials thanks to a measuring line that ensures that the proper length of the fabric or foam is cut. The PR-3 manual measuring stop is equipped with a manual locking system that allows for fixing its position in a precise manner. The position of the measuring stop can be read on the measuring line that is placed on the tabletop, and the position can be easily changed whenever needed with handles on the sides of the measuring stop. The device can be produced in various colours and dimensions.

Specifications:

Width of the measure   1843 [mm]
Length of the guideway 1040 [mm]
Height of bumper 300 [mm]
Guideway Profile rail / trolley with ball bearing
Blockade Holdfast with the knee koint
Frame Made of aluminum system profiles

REXEL
ul. Radziwoja 11,
61-057 Poznań, Polska

М. +48 697 530 240
Т: +48 61 876 89 46
E: info@rexelpoland.com
