MATERIAL ROLL RACK LS-3

MATERIAL ROLL RACK LS-3

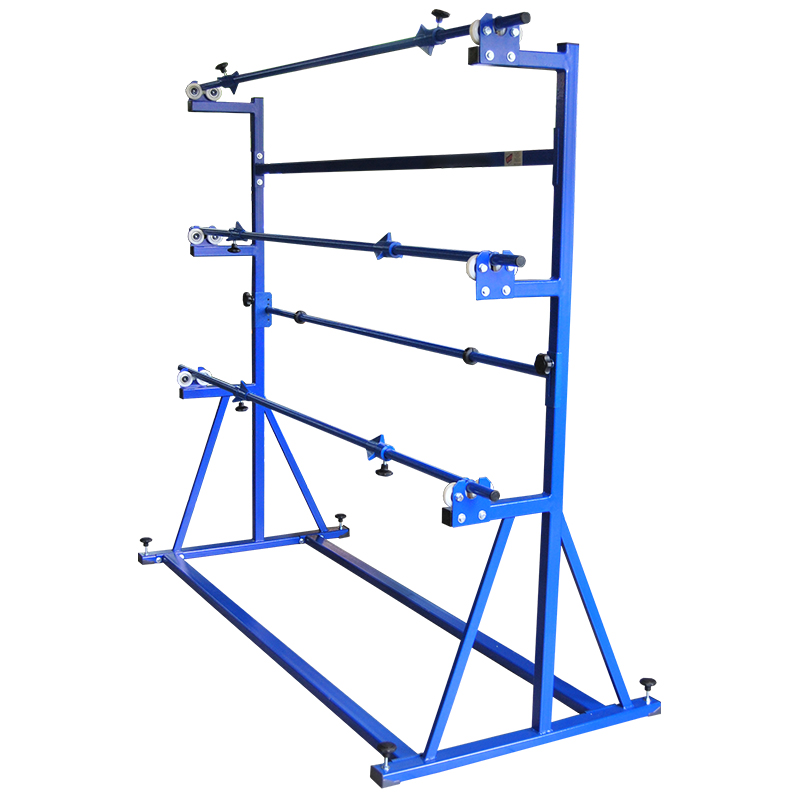

Material roll rack LS-3 is designed for three rolls.

Key features:

- Universal roll racks designed for fabric roll storage or feeding.
- Frame made of closed steel profiles and powder-coated tubes.
- Tubes equipped with special cones that can be blocked to fix the roll.
- Tubes are placed in special slots between wheels on bearings.
- (Optional) Special brake system to prevent self-unwinding of the fabric rolls.
- Non-standard roll racks are available on request.

Specifications:

Model:    LS-3
Maximum roll width:    1800 mm  (70.86")
Maximum roll diameter:    500 mm (19.68")
Maximum roll weight:    30 kg (66.13 lbs)
Maximum roll quantity:    3
Roll brake system (optional):    Yes
