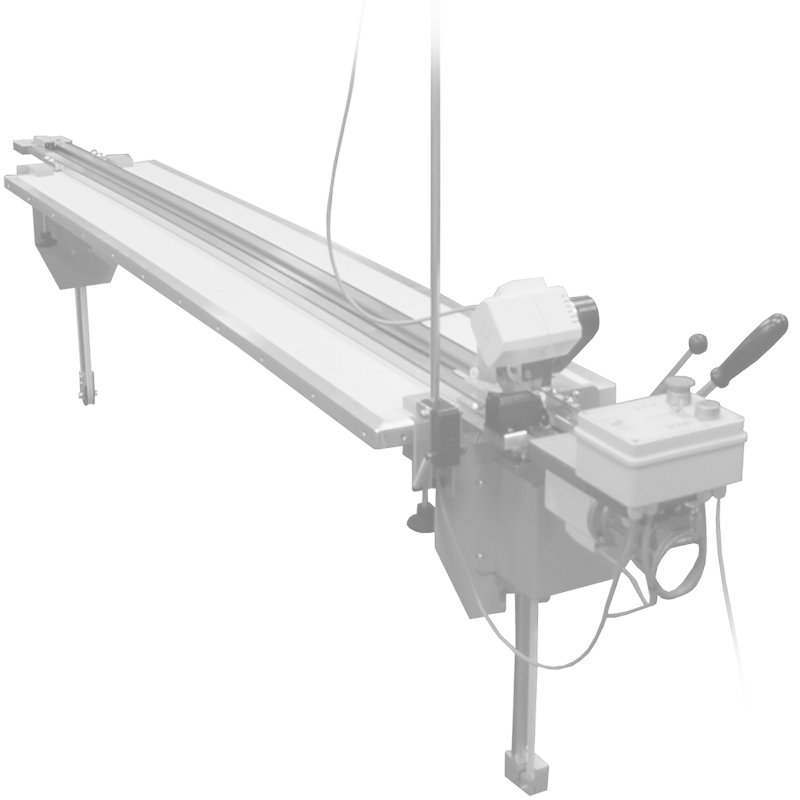

SEMI-AUTOMATIC FABRIC END-CUTTER OT-1/A

Key features:

- Using this end-cutter can significantly increase productivity in the workplace. It ensures quick and accurate fabric cutting.
- It can be mounted on cutting tables, fabric rewinding machines and other machines as a supplementary equipment.
- The cutting process of the material is semi-automatic (when the start button is pressed, the cutter cuts and returns back automatically).
- Table supplied separately.

Specifications:

Model:    OT-1/A
Standard cutting width:    2000 mm (78.74")
Maximum cutting width:    2500 mm (98.4")
Voltage:    230 V
Cutter motor power:    120 W
Gear motor power:    120 W
Blade diameter:    108 mm (4.25")
Blade rotation speed:    2200 RPM
Movement speed:    0.5 m/s (1.64 ft/s)
Working pressure:    -
Pneumatic clamp:    No
